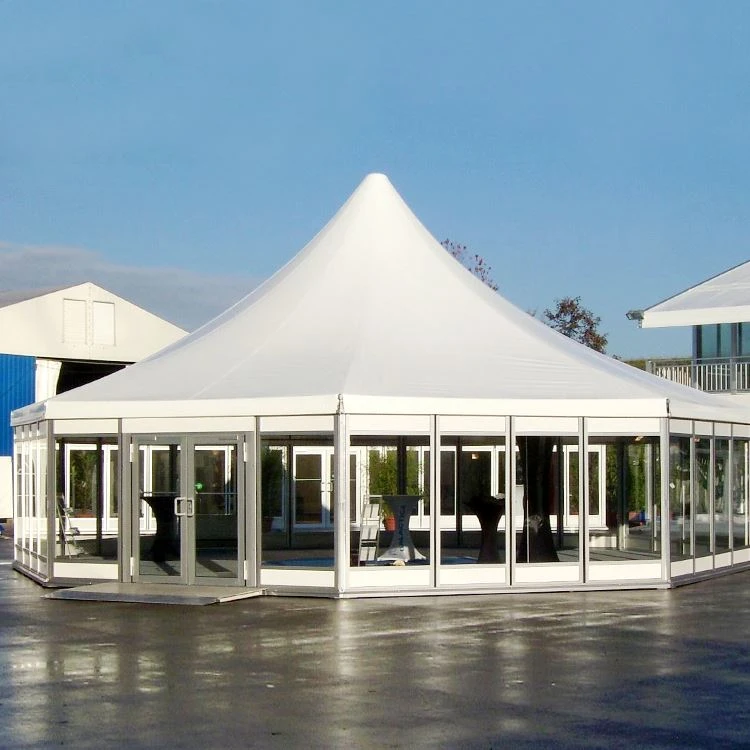

Polygon Tsev Pheebsuab
Raws li cov kev xav tau sib txawv, cov tsev pheeb suab polygon muaj ntau qhov ntau thiab tsawg ntawm 6 meters mus rau 50 meters, muaj peev xwm nce lossis txo qhov ntev yam tsis muaj kev txwv, thiab qhov nrug deb ntawm 3 meters lossis 5 meters.
- Kev xa khoom sai
- Quality Assurance
- 24/7 Kev Pabcuam Cov Neeg Siv Khoom
Khoom Taw qhia
Polygon Tents yog lub tsev pheebsuab tshiab thiab qhov muag pom cov qauv tsim uas sawv nrog lawv cov duab geometric tshwj xeeb, muab qhov chaw niaj hnub thiab zam rau txhua qhov xwm txheej. Lub moj khaum ntawm lub tsev pheeb suab polygonal yog tsim los ntawm qib high-qib anodized aluminium alloy thiab corrosion-resistant galvanized steel, ua kom lawv cov kav ntev thiab ruaj khov.
Cov yam ntxwv ntawm cov tsev pheebsuab no suav nrog cov qauv tsim uas yooj yim rau kev sib sau thiab disassemble, ua haujlwm siab, thiab cua tsis kam mus txog 120 km / h. Tsis tas li ntawd, polygonal tents muab customizability thiab scalability, muaj peev xwm sib txuas ntau chav nyob los tsim cov chaw loj dua kom haum rau ntau tus qhua lossis tsim cov chaw sib txawv rau cov haujlwm sib txawv.
Tsis muaj kev txwv rau qhov luaj li cas, qhov loj ntawm qhov ntev yog txhua 3 meters (6m, 9m, 12m, 15m) lossis txhua 5 meters (15m, 20m, 30m, 40m…). Ib lub cell extension. Qhov loj customization yog txais.
|
Clear dav |
Bay nrug |
Eave Height |
Ridege Qhov siab |
Main Profile |
Max Cua Load |
|
6m |
3m |
2.6m |
3.7m |
84 * 48 * 3mm |
120 km / h |
|
8m |
3m |
2.6m |
4.0m |
84 * 48 * 3mm |
120 km / h |
|
10m |
3m/5m |
2.6m/4m |
4.4m/5.6m |
100 * 48 * 3mm |
120 km / h |
|
12m |
3m/5m |
2.6m/4m |
4.8m/6.1m |
100 * 48 * 3mm |
120 km / h |
|
15m |
5m |
4m |
6.4m |
166 * 88 * 3mm |
120 km / h |
|
18m |
5m |
4m |
7.2m |
166 * 88 * 3mm |
120 km / h |
|
20m |
5m |
4m |
7.4m |
203 * 110 * 4.5mm |
120 km / h |
|
25m |
5m |
4m |
8m |
203 * 110 * 4.5mm |
120 km / h |
|
30m |
5m |
4m |
8.8m |
254 * 120 * 5mm |
120 km / h |
|
40m |
5m |
4m |
10.3m |
300 * 120 * 6mm |
120 km / h |
|
50m |
5m |
4m |
12m |
350 * 120 * 6mm |
120 km / h |
Feature
Khoom siv: Hard Pressed Extruded Aluminium 6061 - T6
Npog: 850 / m² lossis 650 / m² Dawb Ob Chav PVC-Coated, Muaj yeeb yuj PVC npog, Tanspar-ent PVC npog
Npog Feature: 100% waterproof, hluav taws kub retardant (DIN 4102 B1, M2), UV resistant, tsim kua muag-resistant, self-tu peev xwm, thiab lwm yam.
Eave / Ridge Txuas: Kub Galvanized Steel Nto > 60mm
Tso cai qhov kub thiab txias: -30 degree Celsius +70 degree Celsius
Daus load: 85kg / sqm (daus tsis tuaj yeem nyob yog tias siv lub tsev kawm ntawv loj ru tsev tsim)
Lwm yam Feature: Ib qho yooj yim los sib sau ua ke thiab disassemble, Tsis muaj ncej sab hauv, 100% muaj qhov chaw sab hauv
Xaiv cov khoom siv
PVC qhov rais sidewalls
Cov iav qhov rooj
Anchoring
Pob tshab PVC npog thiab sidewall
Rain Gutter
Flooring system
Sab hauv thiab kab hlau rhuav
Lub luj phaj
Hard phab ntsa system
iav phab ntsa system
Ntau yam PVC npog:
- Pob tshab Cover
- Dawb PVC Nrog 1/3 pob tshab npog
- Paj Dawb Thoj
- Custom-made Cover
Daim ntawv thov:
- Kev tshwm sim
- Exhibition
- Party
- Lub tsev khaws khoom
- Kab tshoob
Vim li cas thiaj xaiv peb lub tsev pheeb suab A-Shape:
- Customizable kom haum cov kev xav tau tshwj xeeb.
- Cov ntaub ntawv ruaj khov thiab huab cua-resistant rau kev txhim khu kev qha.
- Ntau qhov ntau thiab tsawg thiab xaiv cov khoom siv rau kev ua kom tiav.
- Yooj yim rau dhos thiab disassemble, txuag lub sijhawm thiab kev siv zog.
