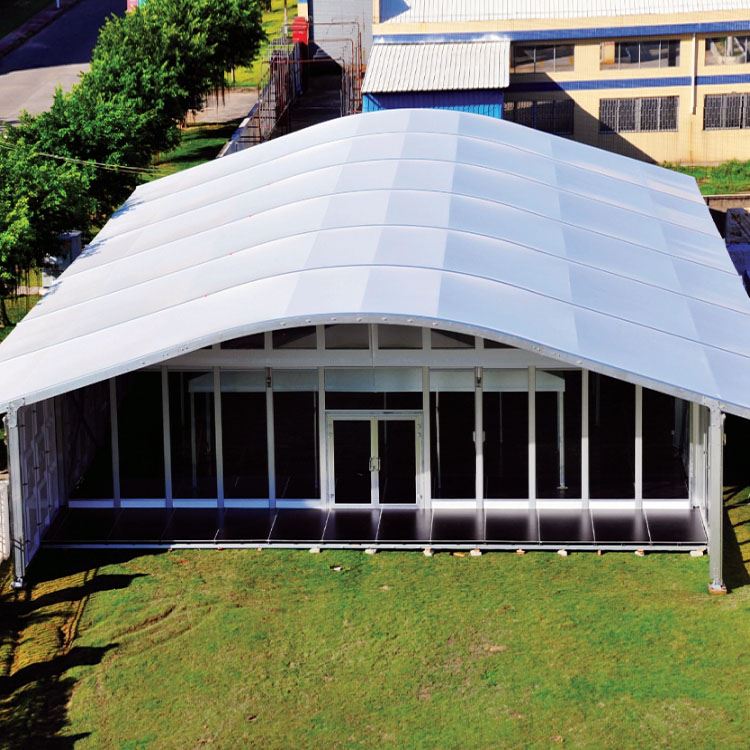

Arcum tsev pheeb suab
Nrog rau qhov dav dav li ntawm 6m mus rau 50m thiab customizable ntev txhua 3 lossis 5 meters, lub tsev pheeb suab Arcum yog tsim los ntawm cov tawv tawv tawv Extruded Aluminium 6061 - T6 thiab nta cov ntaub ntawv muaj zog uas tuaj yeem tiv taus cua mus txog 120km / h.
- Kev xa khoom sai
- Quality Assurance
- 24/7 Kev Pabcuam Cov Neeg Siv Khoom
Khoom Taw qhia
Lub tsev pheebsuab Arcum yog lub tsev pheeb suab kho kom zoo raws li lub tsev pheeb suab A-zoo li. Lub tsev pheebsuab no muaj lub zog muaj zog aluminium alloy ncej thiab yog them nrog PVC. Cov connectors thiab reinforcements yog ua los ntawm kub-dip galvanized steel, uas muaj corrosion kuj thiab durability. Piv nrog rau cov hlau zoo tib yam, nws muaj lub neej ua haujlwm ntev dua thiab hloov tau rau ntau qhov chaw.
Lub Tsev pheebsuab Arcum nta cov qauv qauv, nrog qhov dav dav txog li 15 meters thiab Bay nrug ntawm 3 meters, thiab rau qhov dav dav tshaj 15 meters, Bay Distance yog 5 meters, nrog rau qhov ntev yog infinitely extendable. Ua tsaug rau nws cov qauv tsim, lub tsev pheeb suab Arcum yog yooj yim los sib sau ua ke thiab yooj yim rau disassemble, ua rau nws zoo heev rau kev ua tshoob, txheej xwm, exhibitions, warehouses, thiab ntau dua.
Txhim kho koj qhov chaw nrog cov khoom siv xaiv xws li pob tshab PVC qhov rais, iav phab ntsa, ABS cov phab ntsa, qab nthab, ntoo pem teb, thiab lwm yam.
Yog xav paub ntxiv thov hu rau peb.
|
Clear dav |
Bay nrug |
Eave Height |
Ridege Qhov siab |
Main Profile |
Max Cua Load |
|
6m |
3m |
2.6m |
3.7m |
84 * 48 * 3mm |
120 km / h
|
|
8m |
3m |
2.6m |
4.0m |
84 * 48 * 3mm |
|
|
10m |
3m/5m |
2.6m/4m |
4.4m5.6m |
100 * 48 * 3mm |
|
|
12m |
3m/5m |
2.6m/4m |
4.86.1m |
100 * 48 * 3mm |
|
|
15m |
5m |
4m |
6.4m |
166 * 88 * 3mm |
|
|
18m |
5m |
4m |
7.2m |
166 * 88 * 3mm |
|
|
20m |
5m |
4m |
7.4m |
203 * 110 * 4.5mm |
|
|
25m |
5m |
4m |
8m |
203 * 110 * 4.5mm |
|
|
30m |
5m |
4m |
8.8m |
254 * 120 * 5mm |
|
|
40m |
5m |
4m |
10.3m |
300 * 120 * 6mm |
|
|
50m |
5m |
4m |
12m |
350 * 120 * 6mm |
Feature:
Khoom siv: Hard Pressed Extruded Aluminium 6061 - T6
Npog: 850 / m² lossis 650 / m² Dawb Ob Chav PVC-Coated, Muaj yeeb yuj PVC npog, Tanspar-ent PVC npog
Npog Feature: 100% waterproof, hluav taws kub retardant (DIN 4102 B1, M2), UV resistant, tsim kua muag-resistant, self-tu peev xwm, thiab lwm yam.
Eave / Ridge Txuas: Kub Galvanized Steel Nto > 60mm
Tso cai qhov kub thiab txias: -30 degree Celsius +70 degree Celsius
Daus load: 85kg / sqm (daus tsis tuaj yeem nyob yog tias siv lub tsev kawm ntawv loj ru tsev tsim)
Lwm yam Feature: Ib qho yooj yim los sib sau ua ke thiab disassemble, Tsis muaj ncej sab hauv, 100% muaj qhov chaw sab hauv
Xaiv cov khoom siv
PVC Rooj Cover
Ob chav Wing iav Qhov Rooj
Iav Walling System
Cua txias
Pem teb System
Pob tshab ntaub
PVC Qhov rai Sidewalls
Sab hauv thiab kab hlau rhuav
Ob chav Wing Hluav Taws Qhov Rooj
Ib Qhov Rooj iav Qhov Rooj
Nyhav Phaj Npog
Qhov rooj zawv zawg
Ramp rau iav Qhov Rooj
Transverse iav Qhov Rooj
ABS Phab ntsa
ABS phab ntsa
Sandwich phab ntsa
Clear PVC Gable Phab ntsa
Clear PVC Roof Npog
Daim ntawv thov
Kev tshwm sim
Exhibition
Party
Lub tsev khaws khoom
Kab tshoob
Vim li cas thiaj xaiv peb lub tsev pheeb suab Arcum:
- Customizable kom haum cov kev xav tau tshwj xeeb.
- Cov ntaub ntawv ruaj khov thiab huab cua-resistant rau kev txhim khu kev qha.
- Ntau qhov ntau thiab tsawg thiab xaiv cov khoom siv rau kev ua kom tiav.
- Yooj yim rau dhos thiab disassemble, txuag lub sijhawm thiab kev siv zog.
